THE MODEL COLLECTIONDesigned around your next chapter.

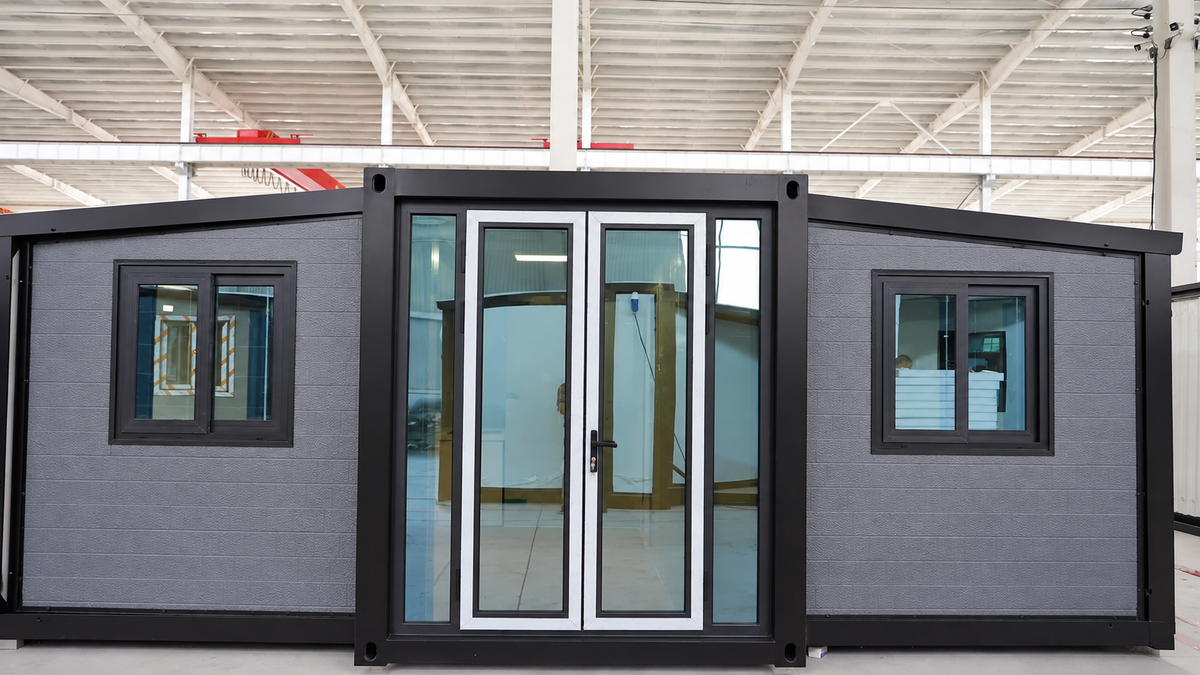

Double-Wing Expandable Modular Home — 20 / 40 ft — AI-enhanced reference view

Reference photography and labeled AI-enhanced visualizations. Final configuration and included fittings are confirmed in your order specification.

Expandable Homes

Double-Wing Expandable Modular Home — 20 / 40 ft

A double-wing expandable modular home with flexible bedroom layouts, insulated panels and a compact folding configuration. Create a living space with your chosen kitchen, bathroom, window arrangement and exterior finish.

10 units available

$20,500.00 USD

Product price in USD · Free worldwide delivery & installation

See dimensions & full specifications ↓Ask about this model ↗

Configuration first

Confirm the floor plan and included fittings.

Delivery planned for your site

Postcode and site access help us plan installation.

Clear order terms

Review the specification before paying.

THE DETAILS

Know your model.

Product specifications

Available sizes	20 / 40 ft; additional 10 / 30 ft and custom options available
Bedroom layouts	1–4 bedrooms, with living room, kitchen and bathroom options
20 ft expanded / folded dimensions	5,900 × 6,300 × 2,480 mm / 5,900 × 2,200 × 2,480 mm
20 ft interior dimensions	5,740 × 6,040 × 2,200 mm
20 ft reference floor area	Approximately 37 m²
30 ft expanded / folded dimensions	9,000 × 6,300 × 2,480 mm / 9,000 × 2,200 × 2,480 mm
30 ft interior dimensions	8,740 × 6,040 × 2,200 mm
30 ft reference floor area	56.7 m²
40 ft expanded / folded dimensions	11,800 × 6,300 × 2,480 mm / 11,800 × 2,200 × 2,480 mm
40 ft interior dimensions	11,540 × 6,140 × 2,240 mm
40 ft reference floor area	Approximately 74 m²
Reference weights	20 ft approximately 3.12 tonnes; 30 ft approximately 4.51 tonnes; 40 ft approximately 6 tonnes
Frame	Light steel structure
Wall panels	50 / 75 mm insulated sandwich panel options
Roof	Sandwich panels with decorative ceiling; flat, gable or sloped options
Flooring	2 mm PVC finish over 18 mm glass-magnesium board in the reference configuration; alternatives available
Windows	Double-glazed insulated tempered-glass options; thermal-break aluminum frames available
Doors	Thermal-break aluminum entry door and metal hinged bedroom doors in the reference configuration
Customization	Color, layout, doors, windows, flooring, kitchen, bathroom and terrace options
Structural warranty	10 years; coverage and terms confirmed with your order

Make it your own

Choose the bedroom layout, exterior color, door and window arrangement, flooring, kitchen and bathroom finishes. Available options depend on the selected size and configuration. Modular Home will confirm your final layout, dimensions, fittings and electrical specification before your order is finalized.

Delivery and installation

Free delivery and installation are available worldwide, with an estimated delivery period of one month. The delivery schedule, site access, foundation requirements, utility connections and installation scope are confirmed for your project.

Construction, interiors and customization

Images show AI-enhanced reference views and available design examples. Room layouts, fittings and finishes vary with the selected configuration. Your confirmed specification and drawings define your order.
